SOx-NOx Reduction Project – Carbon Black
IAC served as the EPC contractor for Phase 2 of Tokai Carbon Black’s Sox-NOx Reduction Project in Addis, Louisiana, a key initiative to meet EPA Consent Decree requirements. Building on Phase 1 infrastructure, IAC was brought in to execute the mechanical, civil, and foundation scopes, delivering a high-performance system to reduce emissions and support long-term operational sustainability.
Key Project Components
Flue Gas Handling & SCR Integration:
- 128” diameter ductwork with three 1,500 HP ID fans (steam and electric powered)
- Duct heater and SCR system with ammonia injection to reduce NOx by ~90%
- Converter structure with steam drum and ASME B31.1 code process piping
Flue Gas Handling & SSO₂ to SO₃ Conversion SystemCR Integration:
- PTFE-lined process piping to condensers
- 20-module condenser assembly with glass tube technology
- Cooling gas fans (1,750 HP each) for heat removal
- Final clean gas stack: 12’ diameter, 173’ tall with air monitoring system
Sulfuric Acid Recovery & Storage:
- Production of 93%+ commercial grade sulfuric acid as a saleable byproduct
- Three stainless-steel storage tanks in concrete containment
- Pump system to transfer product to truck loading area
Foundations & Civil Work:
- Over 500 displacement piles installed in swamp-adjacent terrain
- More than 1,000 precision anchor bolts placed without rework
- Extended site work and berm construction to resolve water drainage challenges

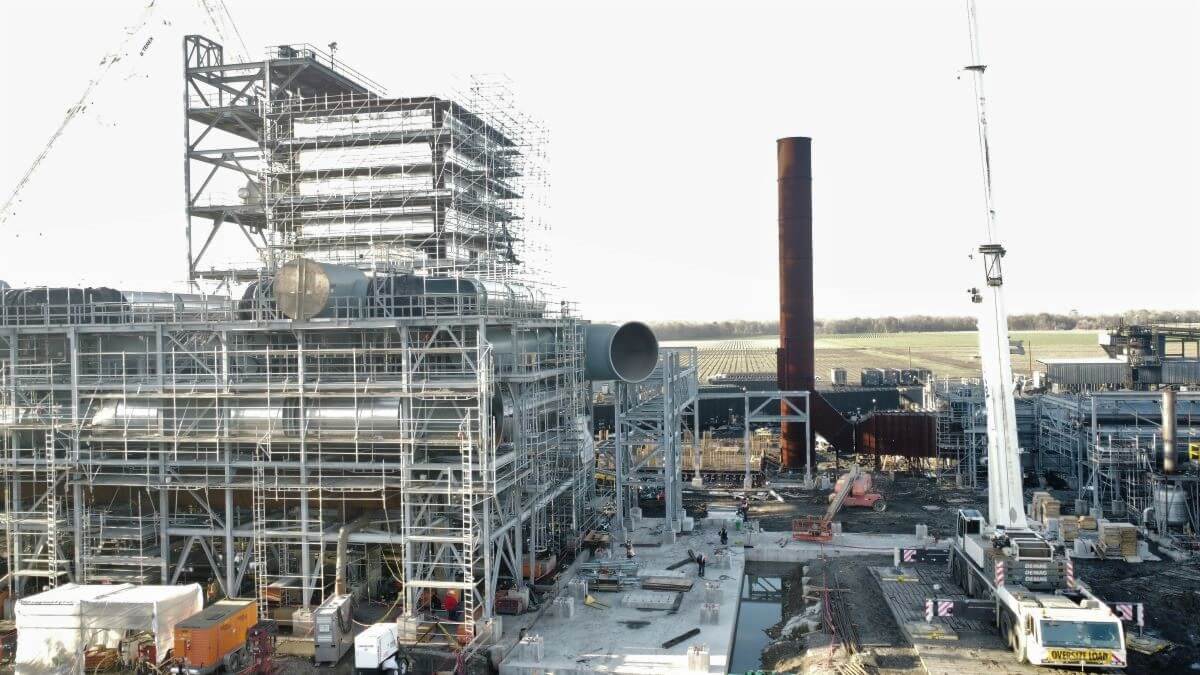

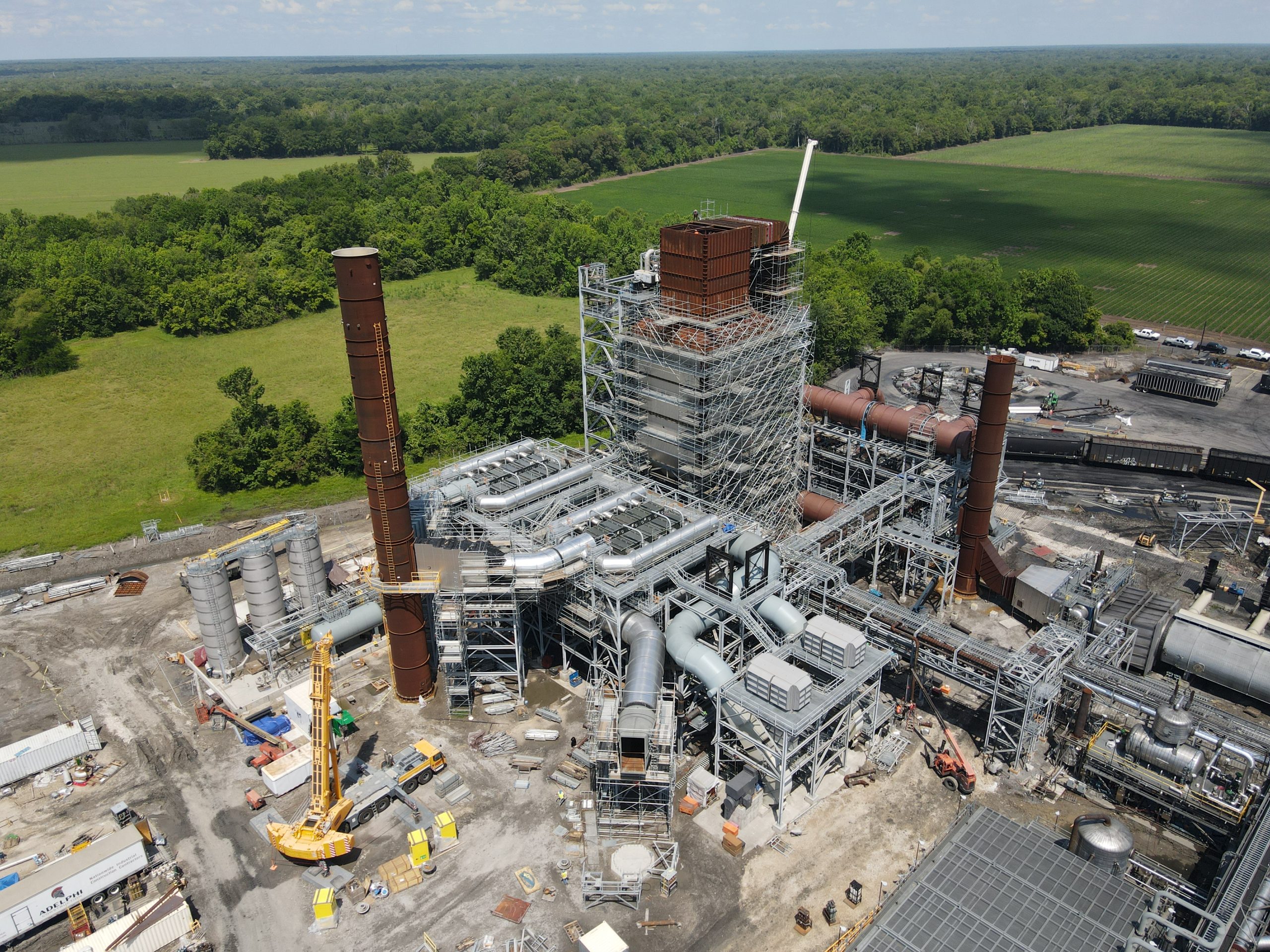

Project Gallery
Results Delivered
Despite post-Covid supply chain delays and site challenges, IAC successfully delivered a high-performing system that reduced plant emissions below EPA-required levels. The integration of NOx reduction and sulfuric acid recovery systems not only improved environmental compliance but also generated a saleable byproduct stream for Tokai Carbon Black.
Why Partner with IAC
This project demonstrates IAC’s ability to adapt to changing project conditions, self-perform critical scopes, and manage complex EPC challenges under regulatory deadlines. By combining engineering, OEM equipment, and field execution, IAC delivered a turnkey solution that met both compliance and operational goals.
